Item # HLARA-5/16

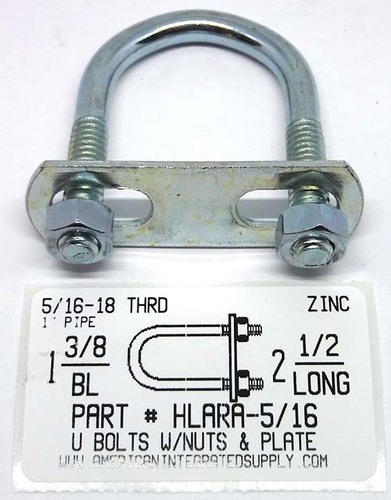

5/16X2-1/2X1-3/8 UBOLT W/PLATE&NUT STL ZINC .268 DIAM 1-1/8" THRD LENGTH
Click image to enlarge
Item # HLARA-5/16
5/16X2-1/2X1-3/8 UBOLT W/PLATE&NUT STL ZINC .268 DIAM 1-1/8" THRD LENGTH
- UM : EA
- Weight: 0.15160
Specifications
| MATERIAL DIAMETER | .268" |
| THREAD SIZE | 5/16"-18 |
| OVERALL LENGTH | 2 1/2" |
| SPREAD LENGTH | 1 3/8" |
| THREAD LENGTH | 1 1/8" |
| FOR PIPE SIZE | 1" |
| MATERIAL | STEEL ZINC PLATED |
×
